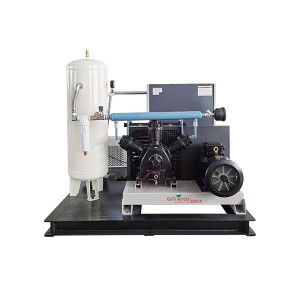

High quality Screw Booster Integrated Machine is offered by China manufacturer Taike. Buy Screw Booster Integrated Machine which is of high quality directly with low price.
The best choice for users with large traffic needs;
Compact structure, small footprint, easy installation;
Low noise, low vibration, easy to operate;
Mature technology, economical and applicable.

PRODUCT DETAILS

Working process

Taike is China manufacturer & supplier who mainly produces Screw Booster Integrated Machine with many years of experience. Hope to build business relationship with you. The working process of the twin-screw host: the volume of the element between the teeth (i.e. the working volume formed by each pair of teeth) gradually expands with the rotation of the rotor, and is connected with the air inlet orifice at the lower left of the machine. The gas enters the element volume through the orifice, and the air inlet process begins; After the rotor rotates to a certain angle, when the volume of the inter tooth primitive exceeds the position of the air inlet orifice, it is disconnected from the air inlet orifice, and the air inlet process ends; After the rotor is turned to a certain angle, the volume of the primitive between the two isolated teeth starts to shrink at the same time because the convex teeth of the male screw invade the concave teeth of the female screw, realizing the gas compression process. Until the moment when a pair of primitive volumes are connected with the exhaust orifice; After the primitive volume is connected with the exhaust orifice, the exhaust process starts and continues until the two teeth are fully engaged, that is, when the two primitive volumes are equal to zero due to the full engagement of the two rotors.

Model	FAD Exhaust capacity FAD (m³/min)	Intake pressure (Mpa)	Exhaust pressure (Mpa)	power (kw)	Crankcase model	structure
GUVUN-4/1.0-4.2	4	0.1	4.2	15	70	One level and two columns
GUVUN-5/1.0-4.2	5	0.1	4.2	18.5	70	One level and two columns
GUVUN-6/1.0-4.2	6	0.1	4.2	22	70	One level and two columns
GUWUN-8/1.0-4.2	8	0.1	4.2	30	80	First order three columns
GUWUN-10/1.0-4.2	10	0.1	4.2	37	80	First order three columns
GUWUN-12/1.0-4.2	12	0.1	4.2	45	100	First order three columns
GUWUN-16/1.0-4.2	16	0.1	4.2	60	100	First order three columns

Note:

The size and weight of the machine will be adjusted according to the specific working conditions, higher pressure or flow parameters are not listed.

The discharge data is based on the standard 1 bar g/14.5 psig inlet pressure and 20℃(68°F)inlet temperature Please contact the technician of taike machinery company.
