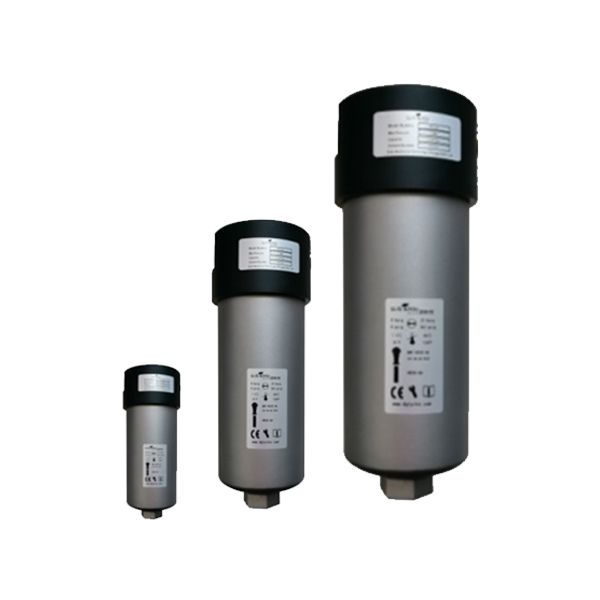

Taike is one of leading China High Pressure Compressed Air Filtre manufacturer, supplier and exporters. The filter shell is made of aluminum alloy, and the filter element is imported filter material, which has good oil drainage performance and effectively prevents oil and water from overflowing.
The temperature resistance can reach 120 °C, which is suitable for high temperature working conditions.
Nitrile/Viton O-rings prevent compressed air leaks and passage of fine particles. The stainless s

PRODUCT DETAILS

Taike is one of prominent manufacturer, producer, and exporter of High Pressure Compressed Air Filtre in China.

Model	FAD Exhaust capacity FAD (m³/min)	Maximum operating pressure (Mpa)	Interface dimensions	Dimensions	Weight （KG）	Filter cartridge model
GNY-H040-**	4	4.2	RC 3/4″	106*187	2	H040-**
GNY-H080-**	8	4.2	RC 3/4″	106*187	4	H080-**
GNY-H200-**	20	4.2	RC 1 1/2″	130*255	8	H080-**
GNY-H350-**	35	4.2	RC 2″	150*400	16	H350-**
GNY-H600-**	60	4.2	RC 2 1/2″	175*565	28	H600-**

Note: ** represents the filter precision, divided into: AO\AA\AX\ACS

Working principle

1. Carry the compressed air containing dust, oil, rust, water and other harmful substances into the first stage filtering device of the compressed air filter. 2. When the compressed air passes through the first stage cylindrical mesh filter element, it will produce coalescence effect, and the larger particles will be adsorbed on the filter material, and the water will condense into larger water droplets.

3. When entering the separation chamber, the speed of compressed air slows down, making the particles gather again, and the water mist condenses on a honeycomb water collector again.

4. The water carrying impurity particles flows to the drainage device along the bottom and is discharged through the automatic or electric drain valve.

5. More than 95% of the water drops, oil and large particles in the compressed air have been filtered by the first filter element, and the compressed air filtered by the first stage enters the second filter element.

6. When the compressed air passes through the fiber filter screen made of special cotton in the second stage, thousands of small vortices will be generated. At the same time, the compressed air will be accelerated dozens of times. The vortex center is like a tornado, forming a vacuum state. The water droplets that are not filtered in the first stage will be vaporized, converted and filtered again. At the same time, particles as small as 5 microns will also be completely removed by the second stage filter screen.

7. After two-stage filtration, clean and dry compressed air without dust, rust, oil and water drops can be achieved to ensure the normal operation of pneumatic equipment and prolong the service life of pneumatic equipment.
