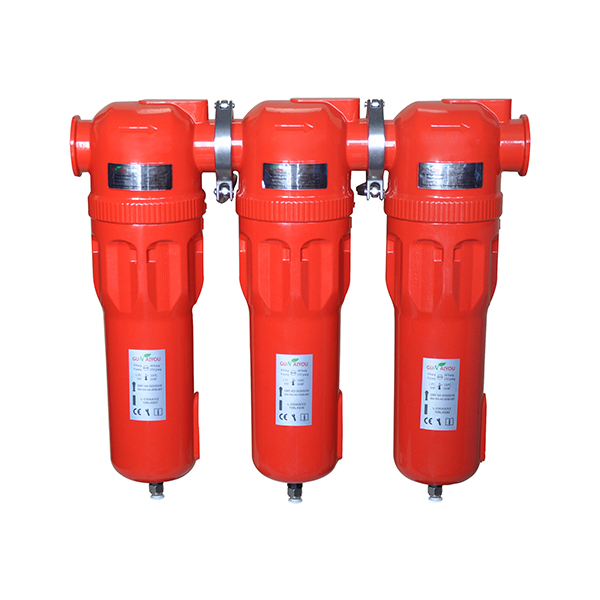

Compressed air filters are the ideal solution to remove contaminants from compressed air systems and save energy. Utilize imported quality filter material and design technology to ensure high quality compressed air quality and low operating costs.

PRODUCT DETAILS

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Compressed Air Filter, Taike looks forward to cooperating with you.

1. The filter element adopts imported advanced filter material and stainless steel support net to prevent secondary pollution, and the particle interception effect is over 99%. The wet differential pressure is 0.17~0.25bar, and the highest is not more than 0.35bar;

2. The shell is made of aluminum alloy material by die casting, and the structure is compact to ensure safe use. Parallel connection of shells can reduce installation and maintenance space;

3. All bright bodies are cleaned, degreased and special anti-corrosion treatment before spraying to improve durability and can be applied to offshore platform operations;

4. Precise threaded interface makes installation and maintenance easier and more convenient;

5. Under the pressure of 3.2MPa, the shell can withstand pressure for 96 hours, and the maximum burst pressure is 10.5MPa;

6.Under the working conditions of temperature 1.5-80℃ and pressure 1.0MPa, the shell is guaranteed to be used for 15 years, and the PF, AO, AA, AX, AR, AAR filter elements are guaranteed to be used for 6000-8000 hours. time to replace.

Filter accuracy grade

AO grade: high-efficiency general protection, remove dust particles larger than 1μm, water mist and oil mist, the residual content of oil mist does not exceed 0.6mg/m³ (21℃), 1ppm (w)

AA grade: high-efficiency oil removal filter, remove dust particles larger than 0.01μm, water mist and oil mist, the residual content of oil mist does not exceed 0.001mg/m³ (21℃), 0.001ppm (w)

AX grade: ultra-efficient filtration, remove dust particles larger than 0.01μm, water mist and oil mist, the residual content of oil mist does not exceed 0.001mg/m³ (21℃), 0.001ppm (w)

ACS grade: remove oil vapor and peculiar smell, the maximum residual amount of oil vapor does not exceed 0.003mg/m³(21℃), 0.003ppm(w)

AR grade: installed at the back end of the adsorption dryer to remove dust particles larger than 1μm

AAR grade: installed at the back end of the adsorption dryer to remove dust particles larger than 0.01μm
